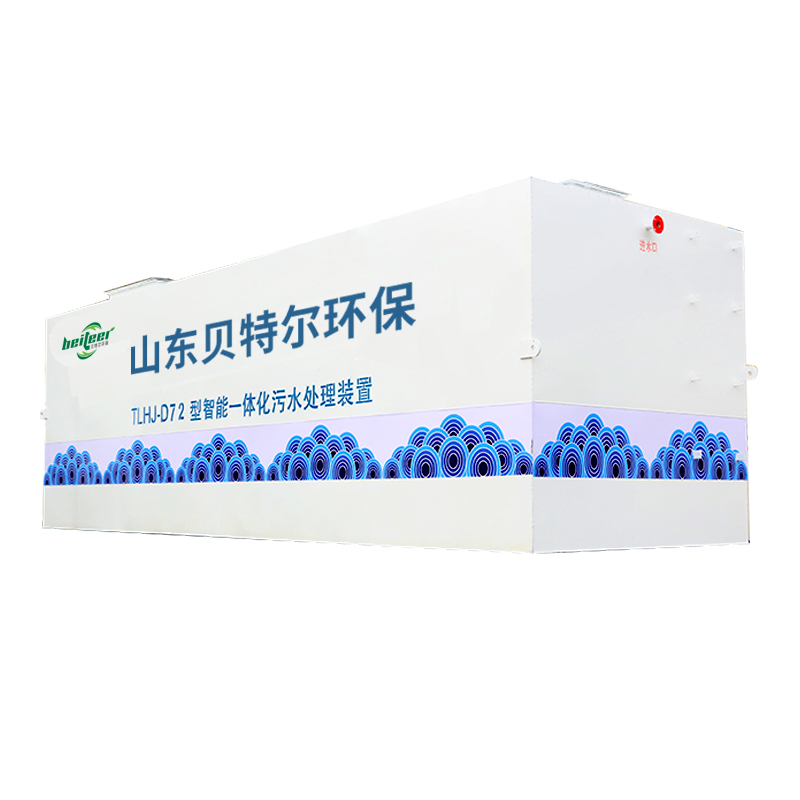

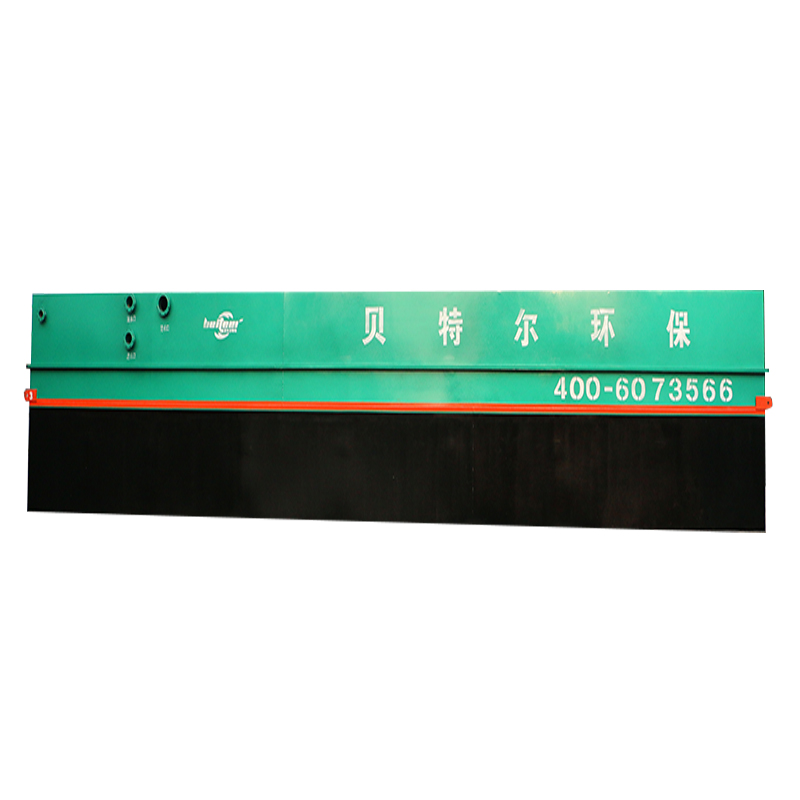

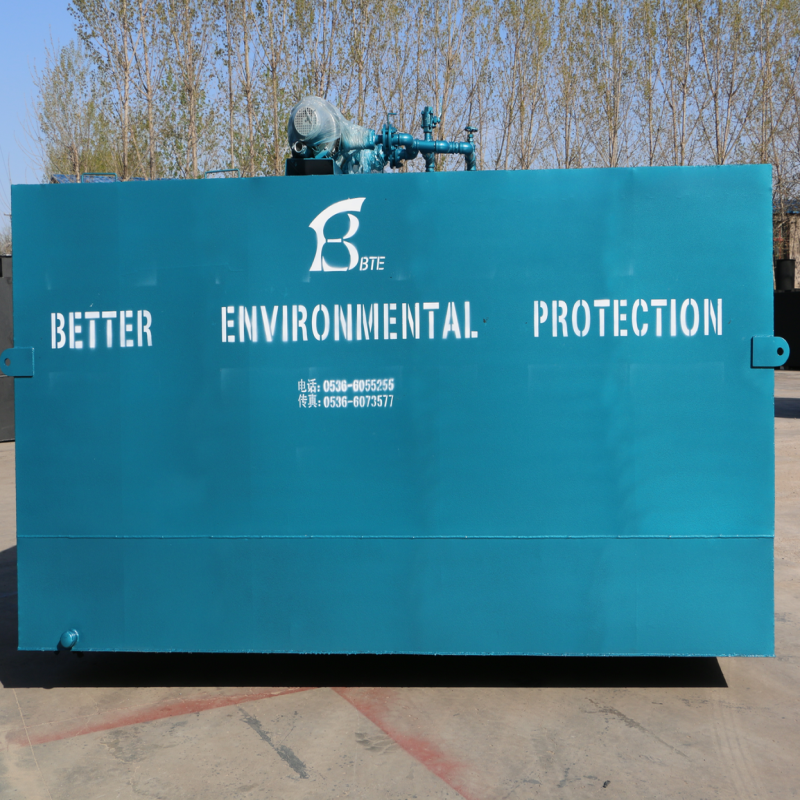

Low Energy Cost In-ground Sewage Treatment Plant Compact Effluent Wastewater Treatment Device with 1

Name: Low Energy Cost Inground Sewage Treatment Plant Compact Effluent Wastewater Treatment Device with 1
Brand: Better
Price: 5 USD

Quality Low Energy Cost In-ground Sewage Treatment Plant Compact Effluent Wastewater Treatment Device with 1 wholesale

Condition : New

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location : Saudi Arabia, Indonesia, Pakistan, India, Mexico, Spain, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Pressure vessel, Pump, Engine, Motor, PLC

Place of Origin : China

Brand Name : Better

Material : carbon steel with anticorrossion paint

Weight : depends

Size : customized

Power : customized

Warranty : 1 Year

Productivity : 3000L/Hour

Weight (KG) : 2411 kg

Application : domestic/healthcare/hospital/scenic spot wastewater

Function : biochemical treatment

Capacity : 5-200m3/h

Certification : ISO

After-sales Service Provided : Online Support 7/24

Advantage : small occupied space,low energy cost,

Packaging Details : Seaworthy packing

Supply Ability : 20 Set/Sets per Month

MOQ : 1

Price : $5,600.00/pieces 2-2 pieces

Contact Now

Product Description

1) Underground Industrial Wastewater Treatment Equipment (WSZ) can be embedbelow the surface, therefore there is no floor space and no need for plant construction, neither heating nor heat preservation. The surface can be afforested.
2) WSZ device consists of steel structure, adopts new anti-corrosion material. And its anti-corrosion can reach 12 years.
3) It uses plug flow biological contact oxidation pond, the effect is better. It is smaller than active sludge pool. It has
strong applicability to the water, outstanding impact resistance performance, stable discharging water quality, but no sludge expansion. In addition, the new elastomeric stereoscopic materials applying to the oxidation pond bring a higher removing rate,and also can improve the water solubility of oxygen.
4) Because of the low volume load of fillings in AO bio-treatment technology of and microbes in the stage of oxygen, this
equipment would produce less mud. Generally, around 90 days need only one sludge removal.
5) In addition to using conventional silencer to air blower, it sets new acoustical material in the wall. When it is operating,
noise would be under 50 decibel that reduce the influence to surrounding environment.
6) Except for the conventional air exhaust, the device is equipped with soil deodorization measure. Ultimately, stench element is decomposed by the microorganism for deodorization.
7) It is equipped with automatic electric control system and equipment damage alarm system. The device has good reliability,therefore, there is no need for special management, just needs regular maintenance.
8) On the condition of making sure the treating effect, if customers have special requirement including treating power and specification etc., we can design and manufacture specially.

Main Features:
Beautiful appearance, economical investment, continuous operation, compact structure, stable performance, outstanding impact resistance, small occupied space, convenience to the maintenance.
Applications:
1. Hotels, restaurants, nursing homes, hospitals.
2. Residential quarters/residence, private housing, holiday parks/tourist attraction.
3. Stations, airports, port terminals and ship.
4. Factories, mines, tourist, scenic spot.
5. All kinds of industrial wastewater similar with domestic wastewater.

Technical Parameter
Model			0.5	1	3	5	10	20	30
Capacity (m3/h)			0.5	1	3	5	10	20	30
Air blower	Model	HB-0.75			HB-1.1	HB-1.2	HB-4.4	HB-8.8	HB-11.5
Air blower		Power	0.75			1.1	1.2	4.4	4.4*2	11.5
Pump	Model	40QW-10-0.75			40QW-10-7-0.75	50QW10-10-1.1	50QW25-7-1.5	50QW25-7-1.5	50QW42-9-2.2
Pump		Power	0.75-1.1								1.5	2.2
Inlet water	BOD5 mg/L	150-400
Outlet water	BOD5 mg/L	20-60
Floor space			4.5	6.5	12	15	35	51	76

Low Energy Cost In-ground Sewage Treatment Plant Compact Effluent Wastewater Treatment Device with 1

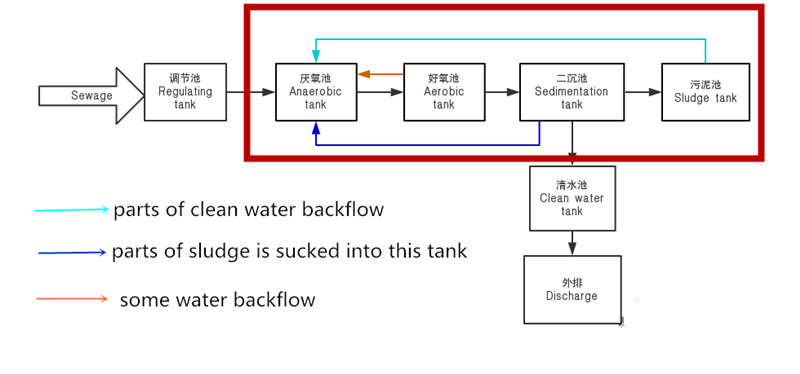

Flow process

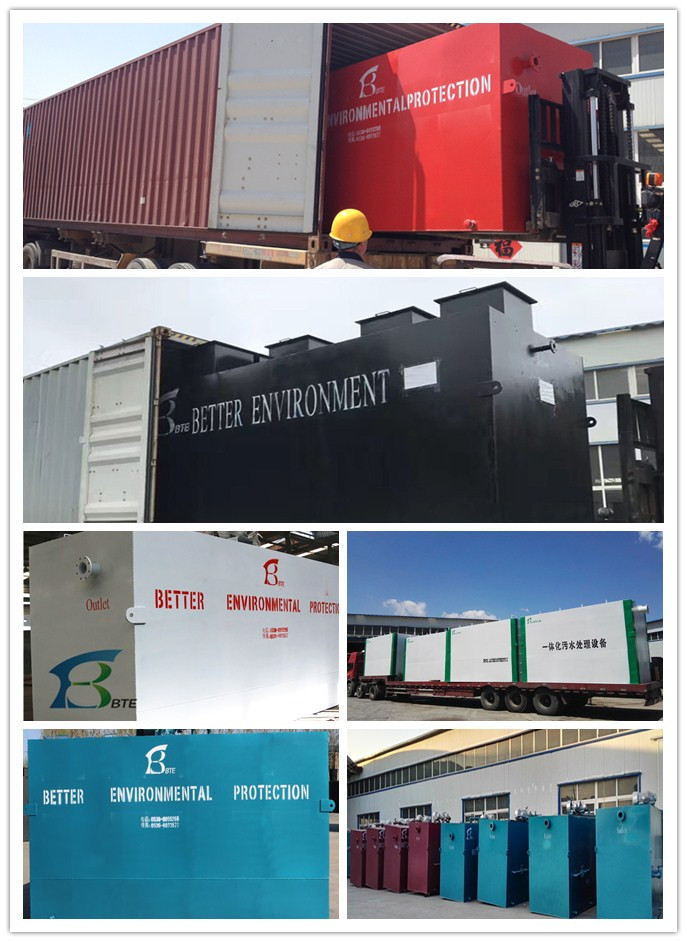

Loading site

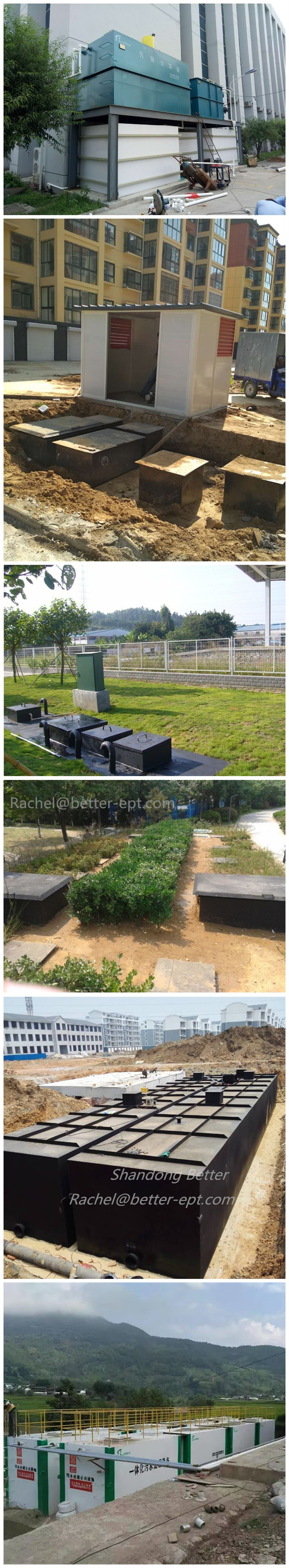

Using site

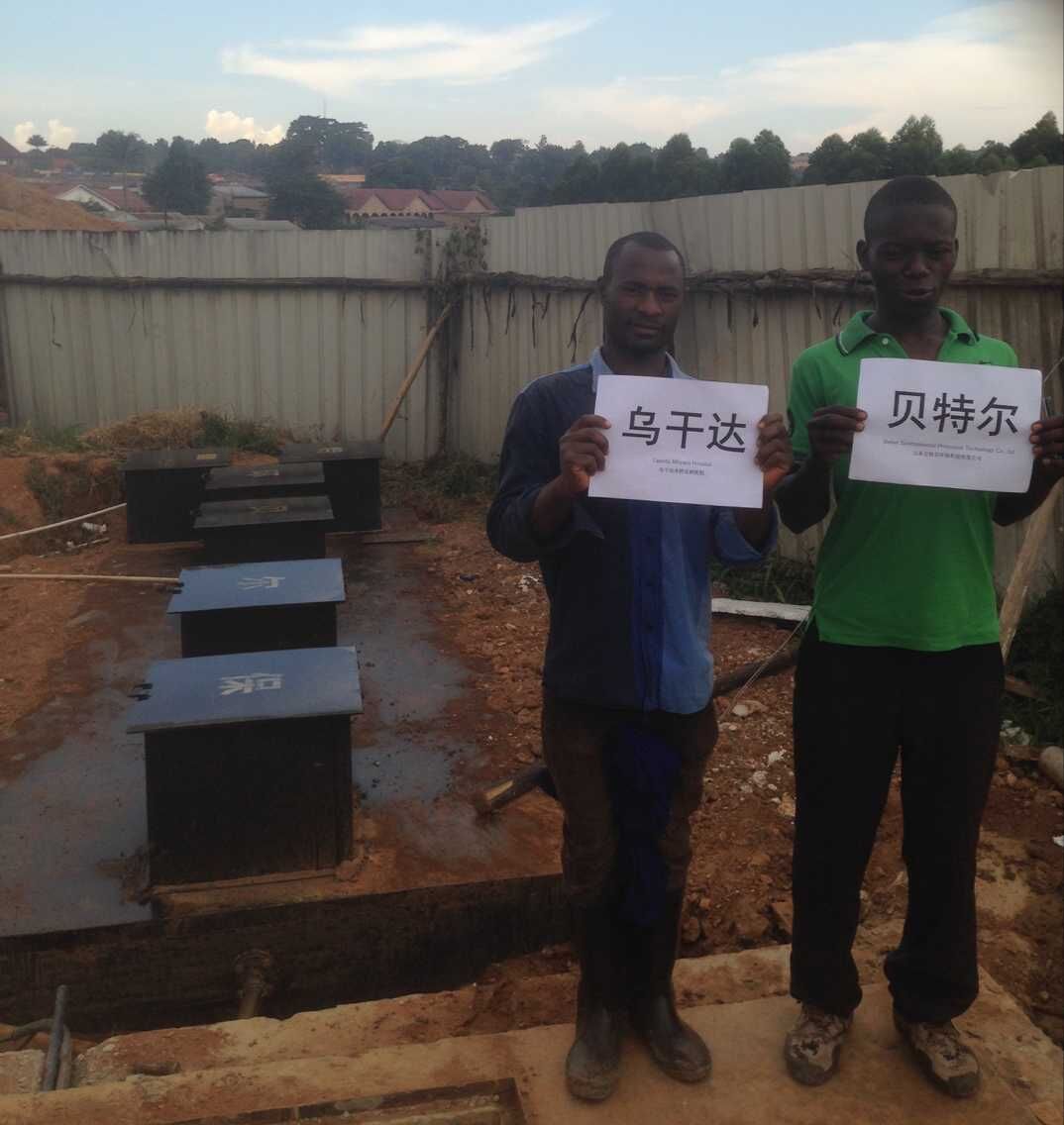

Buyer's Praise

Customers from different countries
