2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator

Name: 2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator
Brand: BETTER
Price: 4 USD

Quality 2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator wholesale

Condition : New

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location : Egypt, Canada, Italy, France, Germany, Viet Nam, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Colombia, South Africa, Japan, Malaysia, Australia

Place of Origin : Shandong, China

Brand Name : BETTER

Model Number : WFS

Type : Refuse Collector

Warranty : 1 Year

Power : 7.5KW

Material : seaworthy packing

Production Capacity : 750L/H

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : New Product 2023

Warranty of core components : 1 Year

Core Components : Motor, Other, chimney, burner, air blower

Weight (KG) : 2500 kg

Name : Waste Burner Waste Incinerator

Raw material : Carbon Steel

Capacity : 20-500kgs/batch

Function : Waste Burning

Advantage : Smokeless

Color : Slivery/black

Technology : Gasification Incineration Technology

Size : Customized Size

Fuel : Oil Fue/gas

Feature : Eco-friendly

MOQ : 1

Price : $4,600.00/pieces 2-2 pieces

Contact Now

2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator

Tips：
If you can't find the model you need or don't know which one you need, please send us an inquiry for details Click to contact us>>

Product Description

Waste incinerator

Waste incinerator is a kind of harmless treatment equipment used in hostipal waste, domestic waste and animal waste treatment. The principle is to use the combustion of coal, fuel oil, gas and other fuels to let the waste be subjected to high temperature incineration and carbonization to achieve the purpose of disinfection treatment.

Advantages and prospect

Waste incineration is suitable for domestic garbage, hostipal waste, and general industrial waste. Compared with landfill and compost, waste incineration is more efficient( one load takes about one hour), saves land and does not cause surface water and groundwater pollution. In the case of accelerated urbanization and shortage of construction land, waste incineration has become a realistic choice for cities with dense population, tight land use and garbage siege.

Application

The incinerator can be used in burning most solid waste, including medical waste, domestic waste and so on.The purification rate could increase to 97%. The harmful components in smoke is reduced to the international standard

below the specified value.

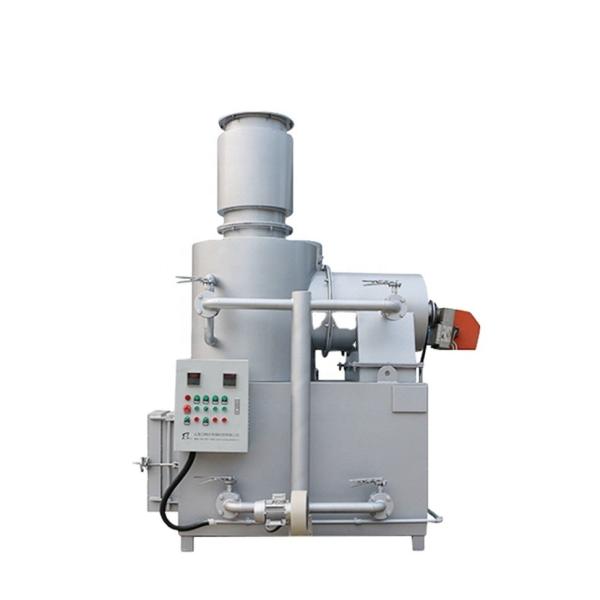

The incinerator structure

The incinerator consists of four parts: main body, the control system, the fuel oil system and the air system.
The main body includes 4 parts: first combustion chamber, second combustion chamber, smoke purification chamber and chimney.
The control system consists of distribution box, two thermocouples and control circuit.
The fuel oil system consists of one oil tank, two combustors, and oil pipeline.
The air system includes air blower, air pipeline, four butterfly valvles.

Techinical parameters

Model	Capacity	Waste inlet size(mm)	Air Fan	Combustion burner	Re-combustion burner
WFS-30	10-30 kg/h	480*600	0.37kw	0.11kw, oil consumption 4-6kg/h	0.11kw, oil consumption 4-6kg/h
WFS-50	30-50 kg/h	620*800	0.37kw	0.11kw, oil consumption 4-10kg/h	0.11kw, oil consumption 4-10kg/h
WFS-150	100-150 kg/h	760*960	0.5kw	0.11kw, oil consumption 5-12kg/h	0.22kw, oil consumption 7-14kg/h
WFS-300	200-300 kg/h	900*1100	1.1kw	0.22kw, oil consumption 7-14kg/h	0.37kw, oil consumption 10-20kg/h
WFS-500	300-500 kg/h	1080*1280	1.1kw	0.22kw, oil consumption 7-14kg/h	0.37kw, oil consumption 15-26kg/h

Manufacture process

Technical support

1. 3D operation video

2. English manual book

3. Technical drawing

4. Experienced engineers guide.

To install the incinerator, we should make sure all parts of incinerator are complete. And we need one crane and 3 workers,1 electrician, and prepared concrete base.
